2-160528: Short Flush Mount Bolt (Burnished)

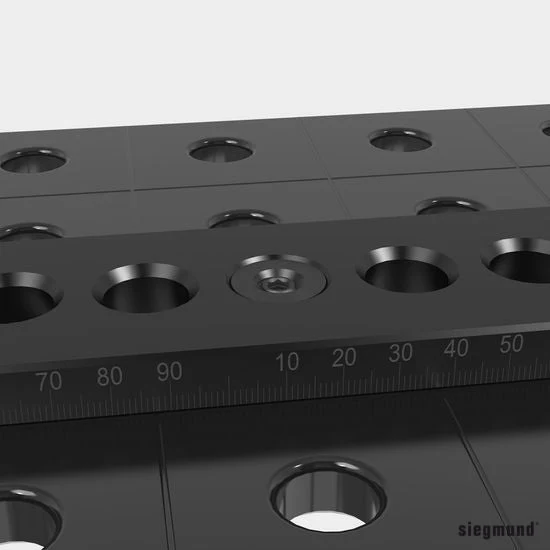

The Siegmund Short Flush Mount Bolt, used as a hidden connection between Siegmund elements. Its design corresponds with other connecting bolts with four balls. Its head disappears into the bore hole, to make it flush with the clamped component. The Flush Mount Bolt is not suitable for use in oblong holes.

Note: This bolt CANNOT be used for connecting tables and U-shaped squares!

Specs and Features:
- Item No. 2-160528
- Burnished
- For Clamping 2 Siegmund Components
- Length: 31mm (1.22'')
- Diameter: 16mm (0.62")
- Shearing Force: 55 kN
- Tightening Torque Steel: 10Nm
- Tensile Force: 3kN
- Weight: 0.08 Ibs.
