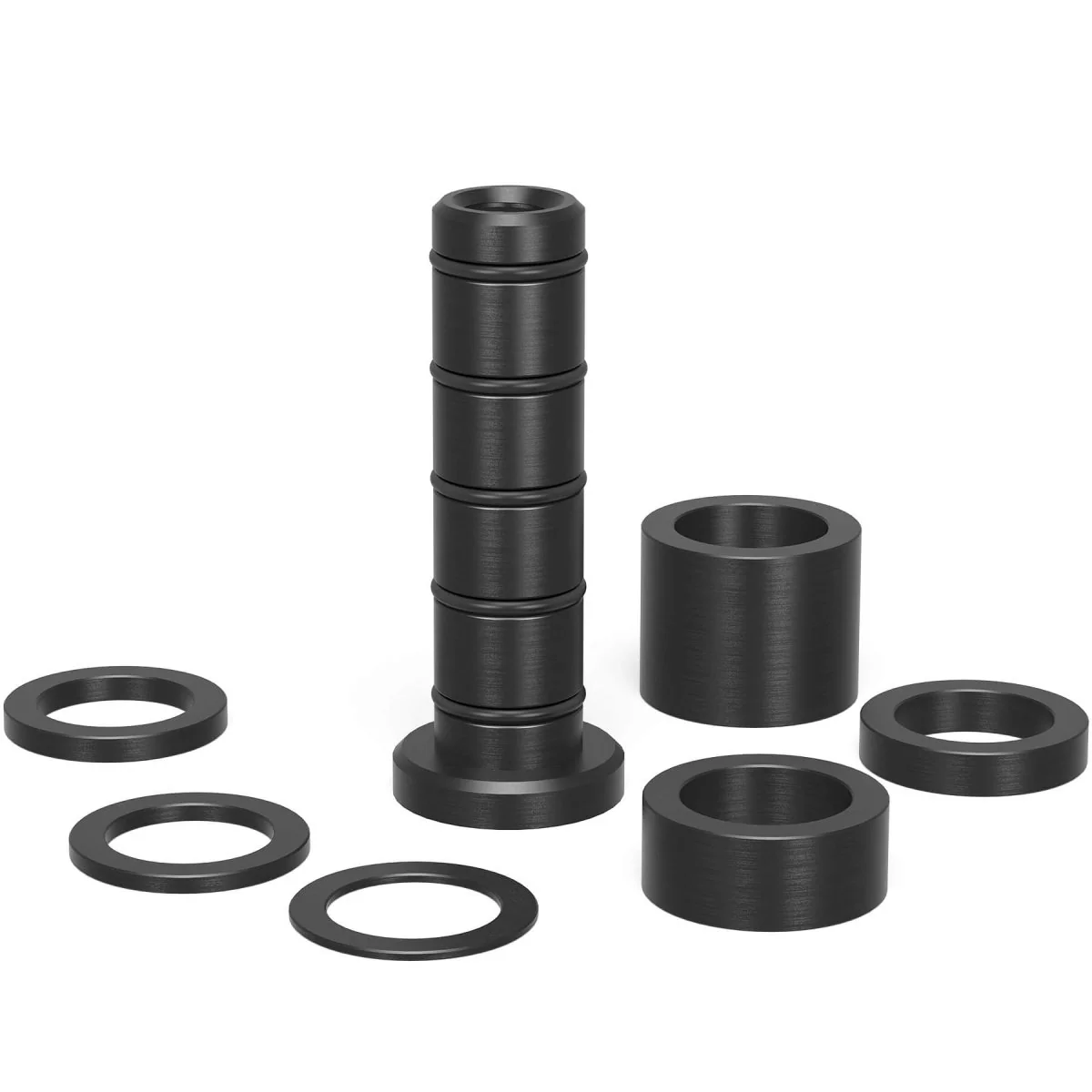

2-160821: 7 Piece Set of Supports (Burnished)

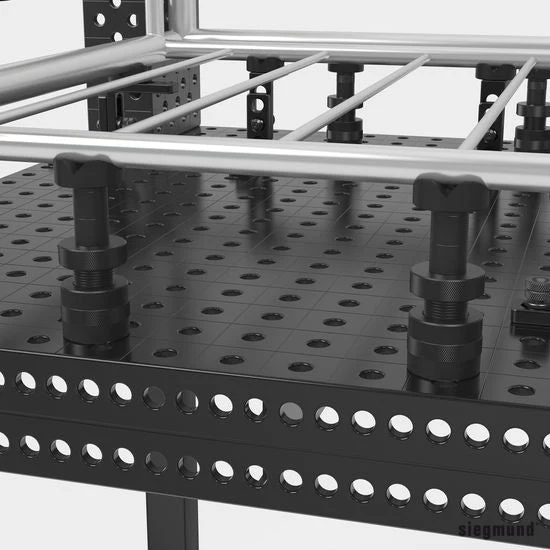

The Siegmund 7-Piece Set of Supports, offers the option to create height-adjustable work surfaces. The individual supports can be utilized to compensate for height differences of 1-60mm. In order to achieve the intended height precisely, the lowest grading of the Supports is 1mm. The measurements are specified on the particular discs. The Supports can be adjusted easily and precisely with the help of O-rings. The Set of Supports can be inserted universally in all drill holes of type 16. The M10 thread on the inside of the supports enables fastening of customer specific components or prisms.

Includes:
2-160821.1: 65mm Tower for Supports (Burnished)
2-160821.2: 6 Piece Washer Set
Gradation of Shims/Washers:
- 1mm
- 2mm
- 3mm
- 5mm
- 10mm
- 20 mm

Specs and Features:
- Item No. 2-160821
- Burnished
- Height: 65mm (2.56")
- Diameter: 25mm (0.98")
- Weight: 0.17 kg. (0.37 lbs.)
