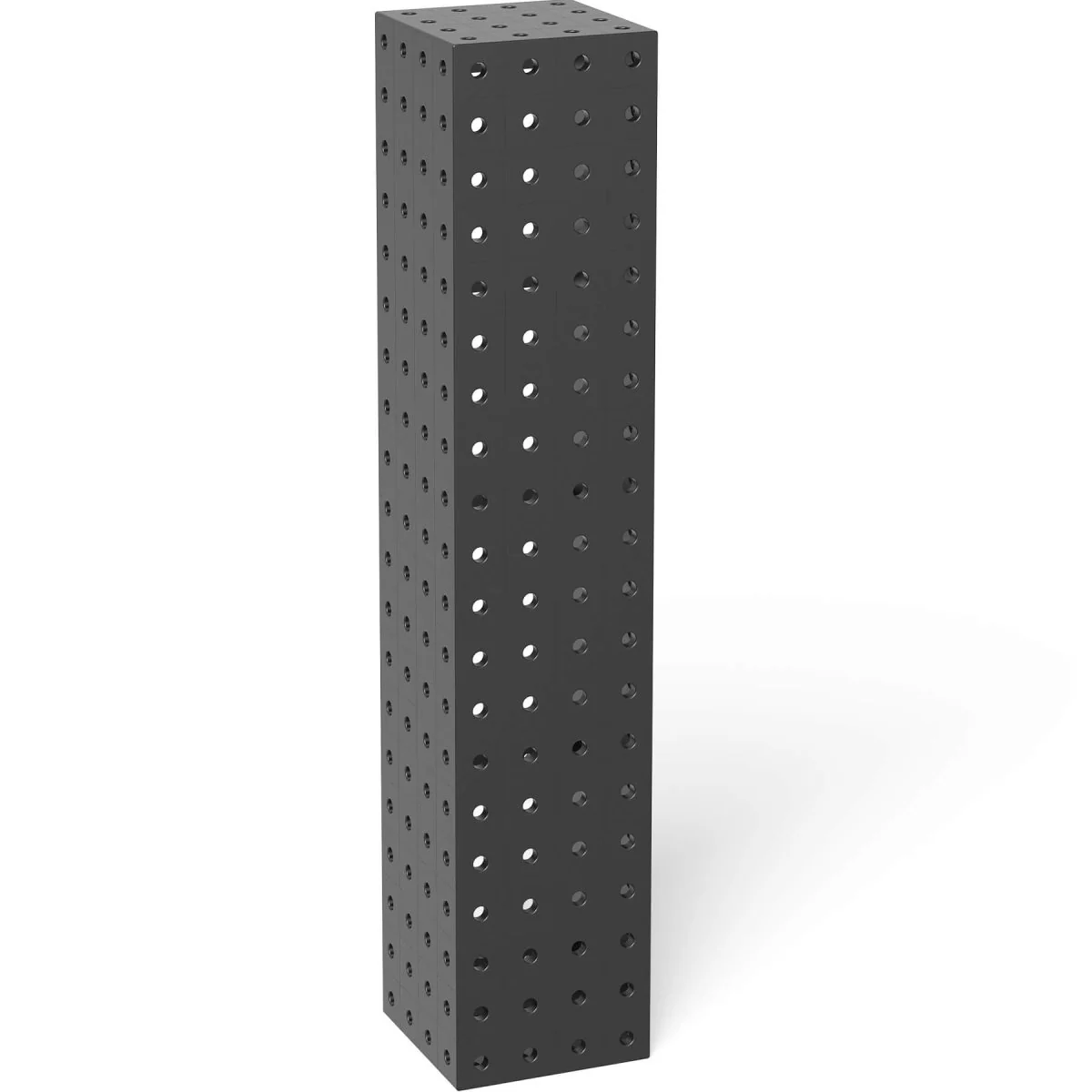

The Siegmund 2-280390.3.P: 2,000x400x400mm Square U-Shape Riser Block delivers large-format stability for structural assemblies and oversized workpieces. Built from 25mm (0.98" Inches) plasma-nitrided steel, it provides exceptional hardness, rigidity, and long-term durability in demanding welding environments.
- It extends welding tables for extra-large assemblies and vertical builds.
- Five-sided boreholes and optional diagonal grid expand clamping versatility.
- 100mm (3.94" Inches) precision grid pattern ensures fast orientation and setup.
- Connector bolt attachment guarantees a secure, rigid connection.
- Mounting holes on the back allow table legs for extensions beyond 500mm (19.69" Inches).
Key Features:
- Engineered for Siegmund System 28 Metric Series setups requiring large-scale stability.
- Plasma nitriding improves surface hardness and wear resistance.
- Multiple borehole options enhance fixture flexibility and accuracy.
- Extended 2,000mm length supports oversized assemblies with structural strength.
Specifications:
- System: Siegmund System 28 Metric Series
- Length: 2,000mm (78.74" Inches)
- Width: 400mm (15.75" Inches)
- Height: 400mm (15.75" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 1,174.17 lbs. (533 kg.)
Common Uses:
This Square U-Shape Riser Block provides reliable support for extra-large welding assemblies, vertical structures, and long table extensions. Fabricators depend on its hardened surface, precision boreholes, and expanded length to secure oversized components with accuracy, strength, and efficiency.
