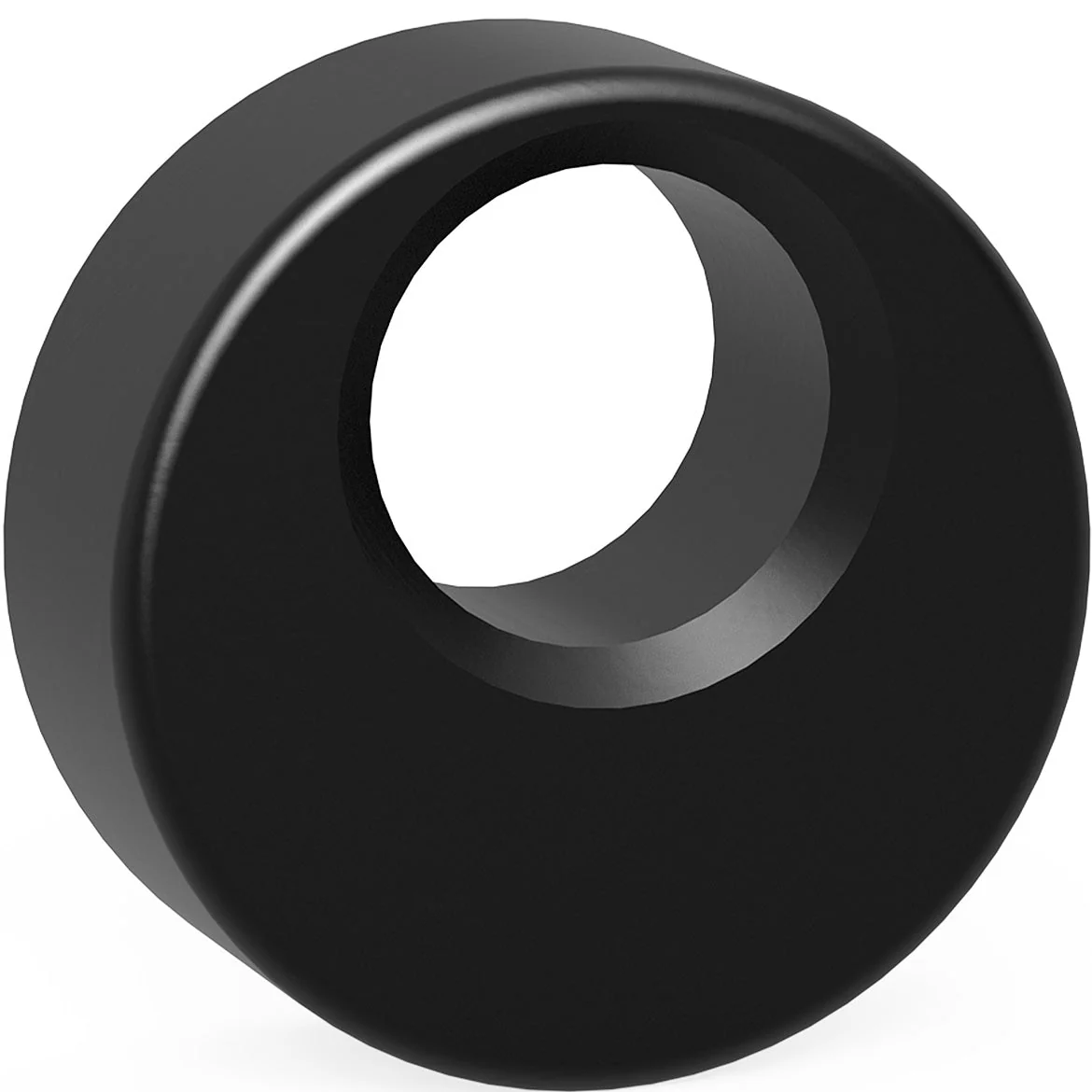

The Ø60mm Eccentric Stop (Nitrided) is a compact and versatile positioning tool for Siegmund System 28 Metric Series tables. It enables infinite adjustment of elements with a simple twist, saving space while maintaining accuracy.
- Nitrided finish increases wear resistance for long service life.
- Compact 60mm (2.36" Inches) diameter design fits in restricted areas.
- 25mm (0.98" Inches) material thickness provides durability under load.
- Simple twisting motion enables quick and precise adjustments.
- Lightweight at 0.93 lbs. (0.42 kg.) for fast, easy handling.
Key Features:
- Space-saving design ideal for tight setups.
- Infinite adjustment range with simple twist operation.
- Nitrided surface enhances durability and resistance to wear.
- Optimized for Siegmund System 28 Metric Series tables.
Specifications:
- Series: Siegmund System 28 Metric Series
- Diameter: 60mm (2.36" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 0.93 lbs. (0.42 kg.)
- Material: Steel, Nitrided
Common Uses:
The Ø60mm Eccentric Stop (Nitrided) provides precise, repeatable positioning in confined welding and fixturing setups. It delivers smooth adjustment with a simple twist and ensures secure clamping even in restricted spaces, making it a reliable stop for demanding fabrication work.
