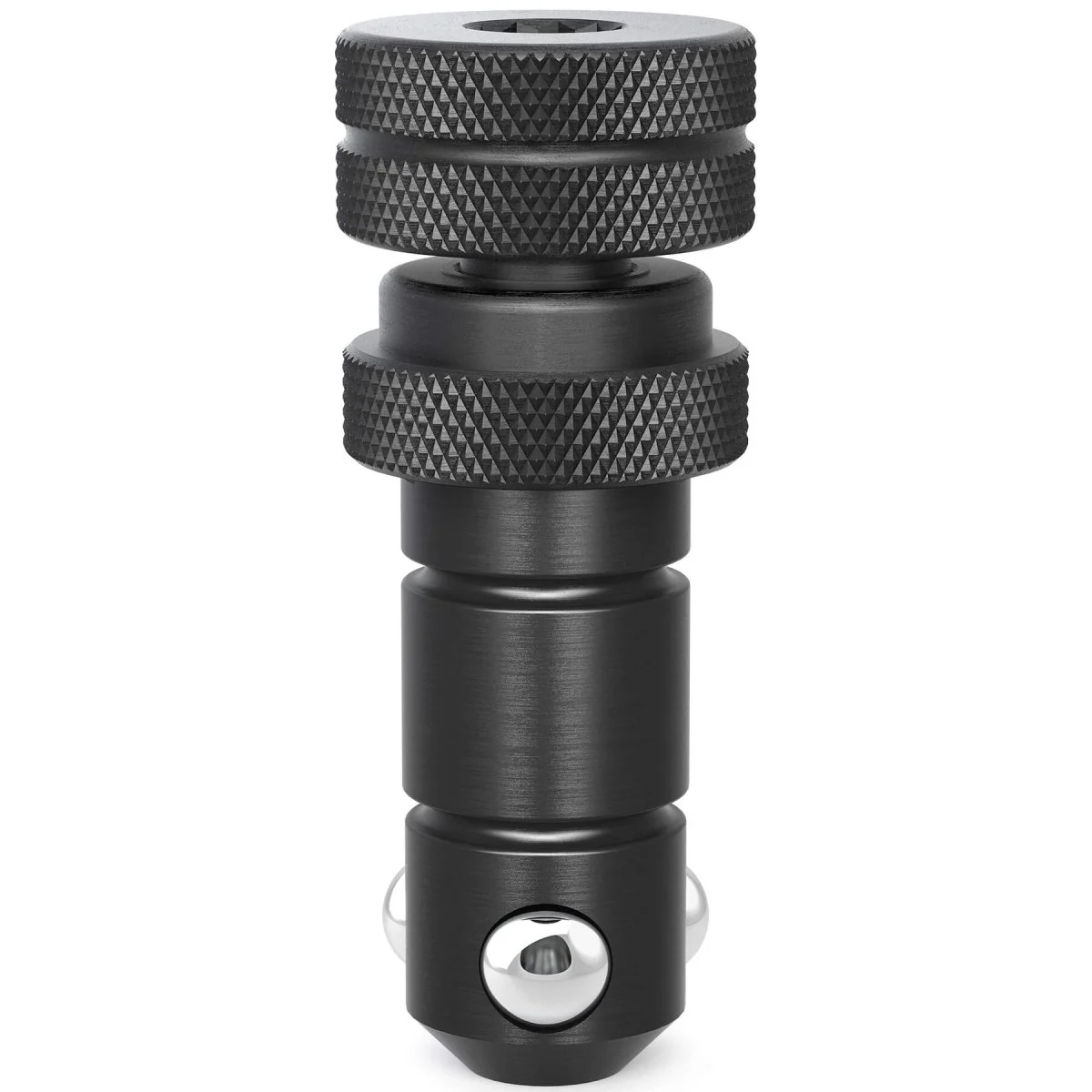

The Universal Bolt Comfort double burnished provides a secure, versatile connection for Siegmund System 28 setups. Built to handle components of varying thickness, it delivers high clamping stability while preventing displacement under load, making it a dependable fastening solution in demanding fabrication environments.
- The 100mm (3.94" Inches) length supports clamping of two components.
- Double burnished finish enhances surface durability and wear resistance.
- Three-ball locking design improves pressure distribution and stability.
- Handles high shear and tensile forces with reliable strength.
- Clamped with an integrated handwheel or hex wrench (Size 14).
- Material-dependent torque settings ensure safe use with both steel and aluminum.
Key Features:
- Comfort version with integrated handwheel for easier operation.
- Handles 200 kN (44,961.0 lbf.) shear force.
- Delivers 25 kN (5,620.0 lbf.) tensile force in steel setups.
- Double burnished surface extends service life under heavy use.
- Compatible with Siegmund System 28 Metric Series.
Specifications:
- Item No.: 2-280532
- System: Siegmund System 28 Metric Series
- Length: 100mm (3.94" Inches)
- Weight: 1.32 lbs. (0.60 kg.)
- Shearing Force: 200 kN (44,961.0 lbf.)
- Tensile Force Steel: 25 kN (5,620.0 lbf.)
- Tightening Torque Steel: 25 Nm (221.2 lbf·in.)
- Tightening Torque Aluminum: 10 Nm (88.5 lbf·in.)
- Connection Type: Integrated Handwheel or Hex Wrench (Size 14)
Common Uses:

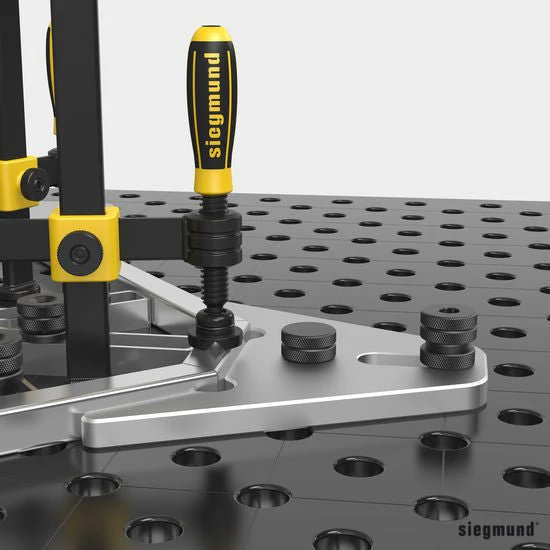

This bolt provides secure, reliable fastening of Siegmund System 28 components with varying material thicknesses. Its three-ball locking system ensures stable pressure distribution, preventing material displacement under high loads. Fabricators rely on it when repeatable precision and durable strength are essential in welding and fixturing operations.
