$14.35The Story

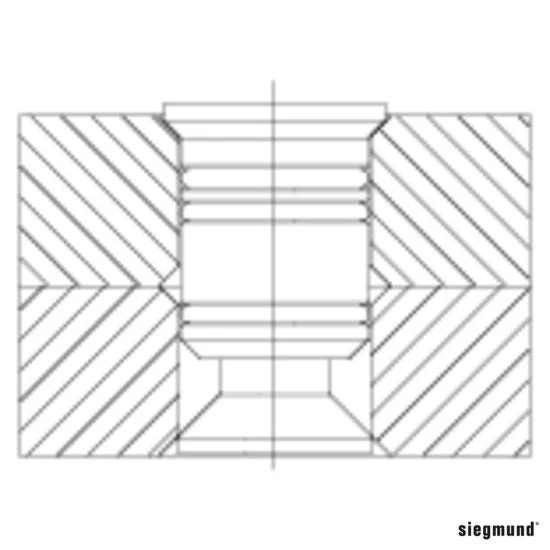

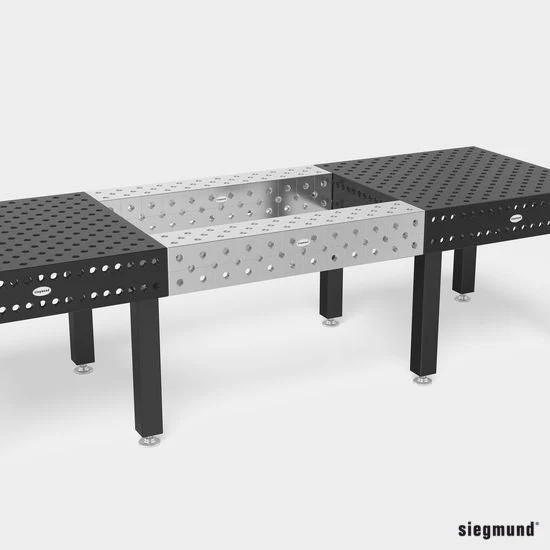

The Siegmund Connecting Bolt (Item No. 2-280560.N) is for connecting 2 Siegmund components, with Allen key Flush-mount Connecting Bolt, especially designed to serve as a fixed long-term connection between large Siegmund components, e.g. tables or U-shaped squares.
The flush mount Allen Key, and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.
The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in oblong slots.
Specs and Features:
- Item No. 2-280560.N
- Nitrided
- With Hexagon Socket
- Length: 50mm (1.96'')
- Diameter: 28mm (1.10'')
- Shearing Force: 200kN
- Tightening Torque Steel: 25Nm
- Tensile Force: 10kN
- Weight: 0.26 Ibs.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Siegmund Connecting Bolt (Item No. 2-280560.N) is for connecting 2 Siegmund components, with Allen key Flush-mount Connecting Bolt, especially designed to serve as a fixed long-term connection between large Siegmund components, e.g. tables or U-shaped squares.
The flush mount Allen Key, and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.
The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in oblong slots.
Specs and Features:
- Item No. 2-280560.N
- Nitrided
- With Hexagon Socket
- Length: 50mm (1.96'')
- Diameter: 28mm (1.10'')
- Shearing Force: 200kN
- Tightening Torque Steel: 25Nm
- Tensile Force: 10kN
- Weight: 0.26 Ibs.
