$21.35The Story

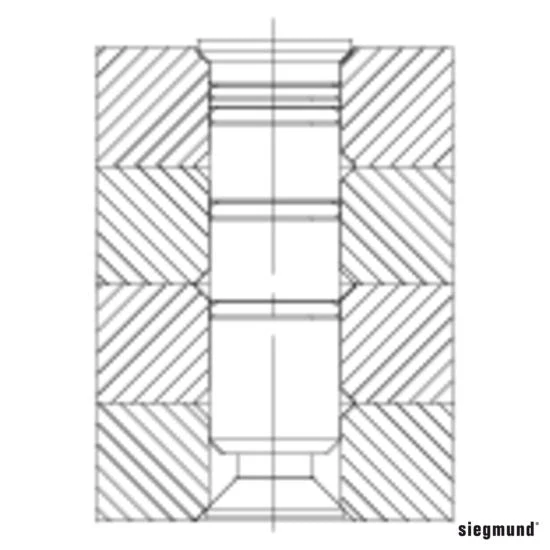

The Siegmund 2-280562: Extra Long Connecting Bolt (Burnished) is especially designed to serve as a fixed long-term connection between 4 large Siegmund components, e.g. tables or U-shaped squares.
The flush mount hexagon socket and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.
The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in oblong holes.
Specs and Features:
- Item No. 2-280562
- Burnished
- For Connecting 4 Siegmund Components
- Length: 100mm (3.93'')
- Diameter: 28mm (1.10")
- Shearing Force: 200kN
- Tightening Torque Steel: 25Nm
- Tensile Force: 10kN
- Weight: 0.75 Ibs.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Siegmund 2-280562: Extra Long Connecting Bolt (Burnished) is especially designed to serve as a fixed long-term connection between 4 large Siegmund components, e.g. tables or U-shaped squares.
The flush mount hexagon socket and the ability of the clamping bolt to center itself, facilitate simple assembly. The countersunk head and the countersunk-head screw are equipped with a 10 hexagonal bit for clamping.
The Connecting Bolt enables sturdy bolting. The Connecting Bolt is not suitable for the use in oblong holes.
Specs and Features:
- Item No. 2-280562
- Burnished
- For Connecting 4 Siegmund Components
- Length: 100mm (3.93'')
- Diameter: 28mm (1.10")
- Shearing Force: 200kN
- Tightening Torque Steel: 25Nm
- Tensile Force: 10kN
- Weight: 0.75 Ibs.
