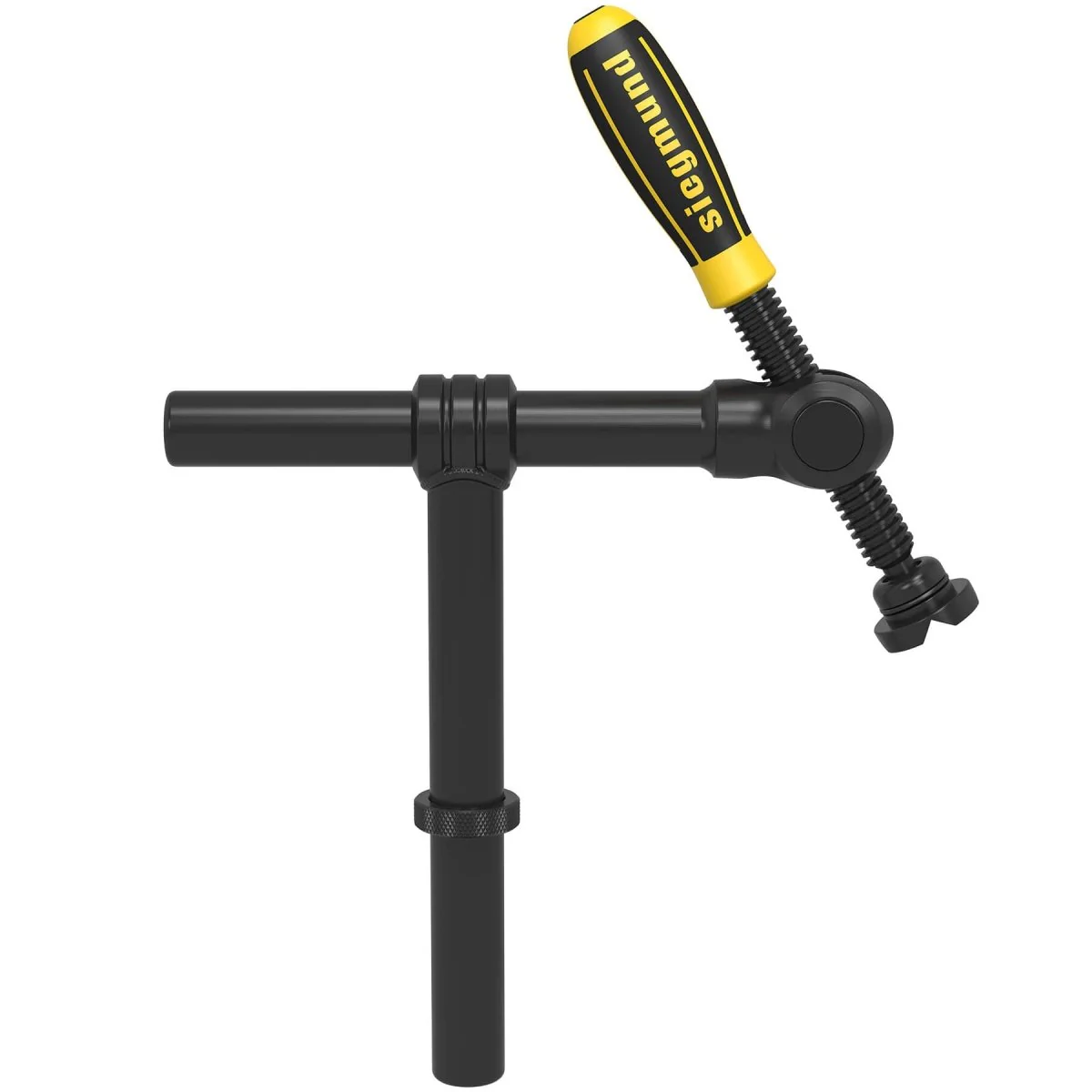

The Siegmund Pipe Clamp Universal offers maximum flexibility by allowing clamping at angles from straight to ±42°. Combining the advantages of both 45° and 90° clamps, it delivers versatile fixturing with strength and precision for System 28 setups.
- Provides 265mm (10.43" Inches) width and 250mm (9.84" Inches) height capacity.
- Delivers up to 3 kN (674.4 lbf.) clamping force for secure positioning.
- Horizontal round tube adjustable up to 200mm for flexible clamping range.
- Burnished and nitrided finish ensures durability and wear resistance.
- Equipped with 135mm threaded arbor for angle versatility.
- Weighs 5.67 lbs. (2.57 kg.), durable yet manageable for frequent use.
Key Features:
- Clamping flexibility with ±42° swiveling arbor.
- Combines benefits of both fixed 45° and 90° clamps.
- Burnished/nitrided finish for long service life.
- Adjustable horizontal tube increases application range.
Specifications:
- Item No.: 2-280604
- System: Siegmund System 28 Metric Series
- Width: 265mm (10.43" Inches)
- Height: 250mm (9.84" Inches)
- Weight: 5.67 lbs. (2.57 kg.)
- Max. Clamping Force: 3 kN (674.4 lbf.)
- Finish: Burnished/Nitrided
- Arbor Length: 135mm (5.31" Inches)
Common Uses:
The Pipe Clamp Universal provides adjustable angular clamping for System 28 welding setups. Its swiveling arbor and extendable horizontal tube allow secure holding of workpieces at a range of angles, from straight alignment to ±42°, making it an ideal solution for complex and variable fabrication tasks.
Parts Used to Create the Siegmund Item No. 2-280604:
(x1) 2-280677
(x1) 2-280678.N
(x1) 2-280679
(x1) 2-280634.1.N
(x1) 2-280657.1.N
(x1) 2-280653.N
