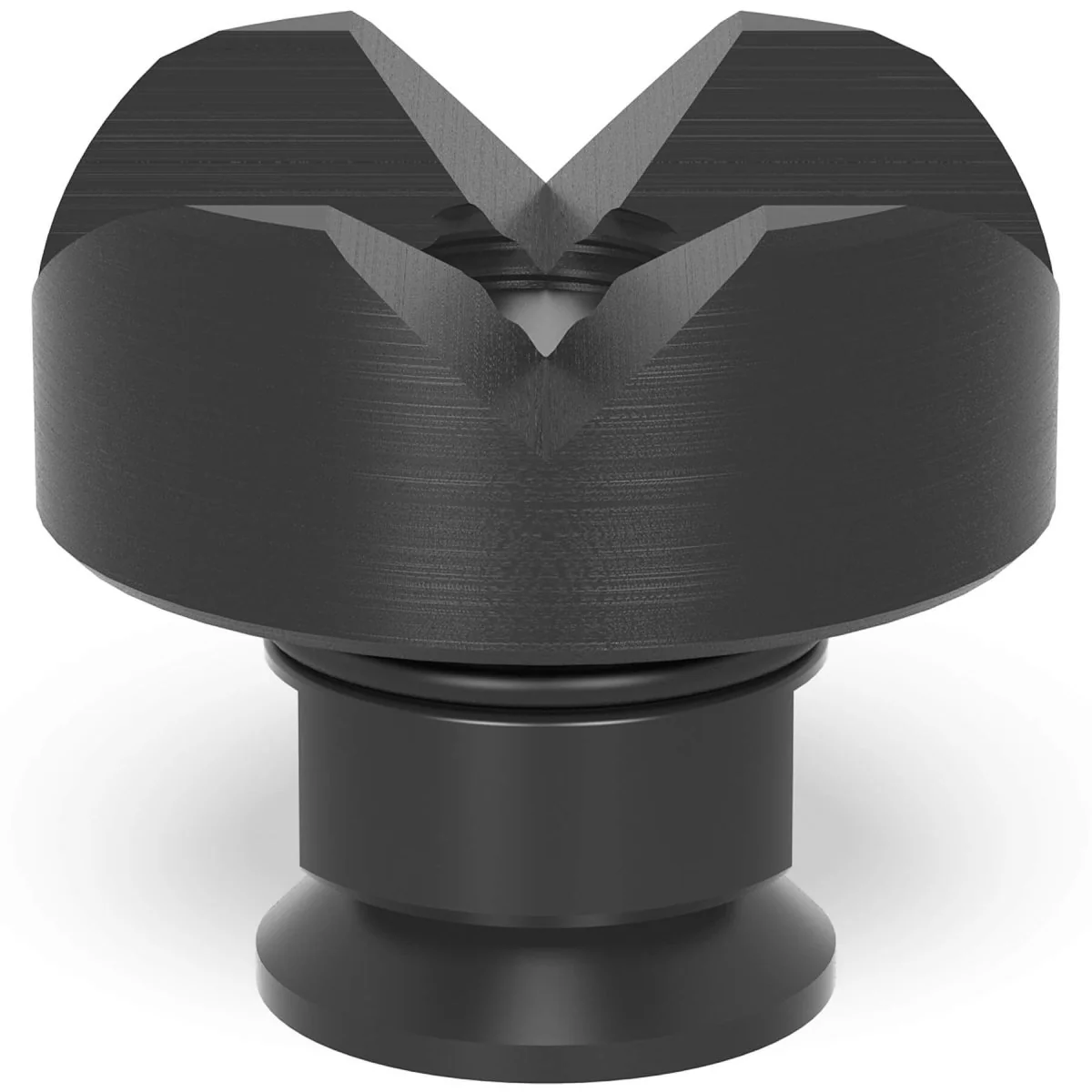

The 2-280645.1 Vario Prism Ø50 provides versatile clamping for both round pipes and 45° twisted square profiles within Siegmund System 28 setups. Its dual 90° and 120° angles deliver secure positioning for pipes up to 50mm (1.97" Inches) in diameter, while the screwed-in collar ensures stable and adjustable fastening.
- The 50mm (1.97" Inches) diameter base provides solid support.
- Its 20mm (0.79" Inches) height keeps the prism compact and precise.
- Weighing 0.44 lbs. (0.2 kg.), it balances strength and ease of handling.
- Dual-angle geometry (90°/120°) increases clamping flexibility.
- M16 screwed-in collar allows secure fastening or quick repositioning.
- Working height can be adjusted with prism extensions for added range.
Key Features:
- Burnished finish enhances wear resistance and durability.
- Dual 90°/120° angles allow flexible clamping applications.
- Supports pipes and twisted square profiles up to 50mm diameter.
- M16 thread and screwed-in collar ensure secure, adjustable positioning.

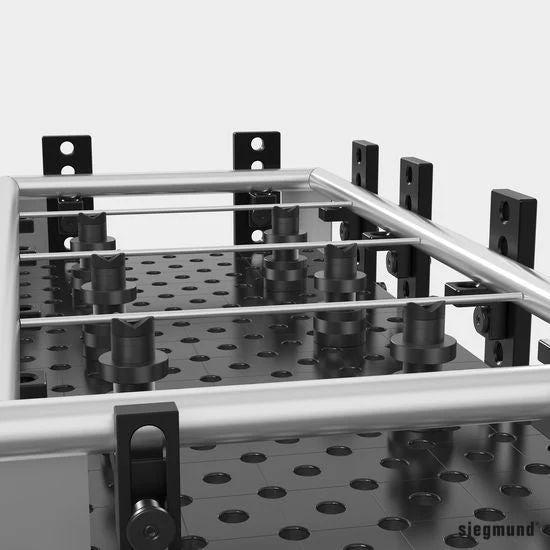

- Compatible with Siegmund System 28 boreholes and prism extensions.
Specifications:
- Item No.: 2-280645.1
- System: Siegmund System 28 Metric Series
- Height: 20mm (0.79" Inches)
- Diameter: 50mm (1.97" Inches)
- Weight: 0.44 lbs. (0.2 kg.)
- Material: Burnished Steel
- Thread: M16 (compatible with prism extensions, e.g., Item No. 280649)
Common Uses:
The 2-280645.1 Vario Prism Ø50 is used to clamp round pipes and twisted square profiles, making it a versatile solution in welding and fabrication. Its dual-angle geometry increases flexibility, while the M16 screwed-in collar provides reliable fastening and adjustable height options in Siegmund System 28 setups.
