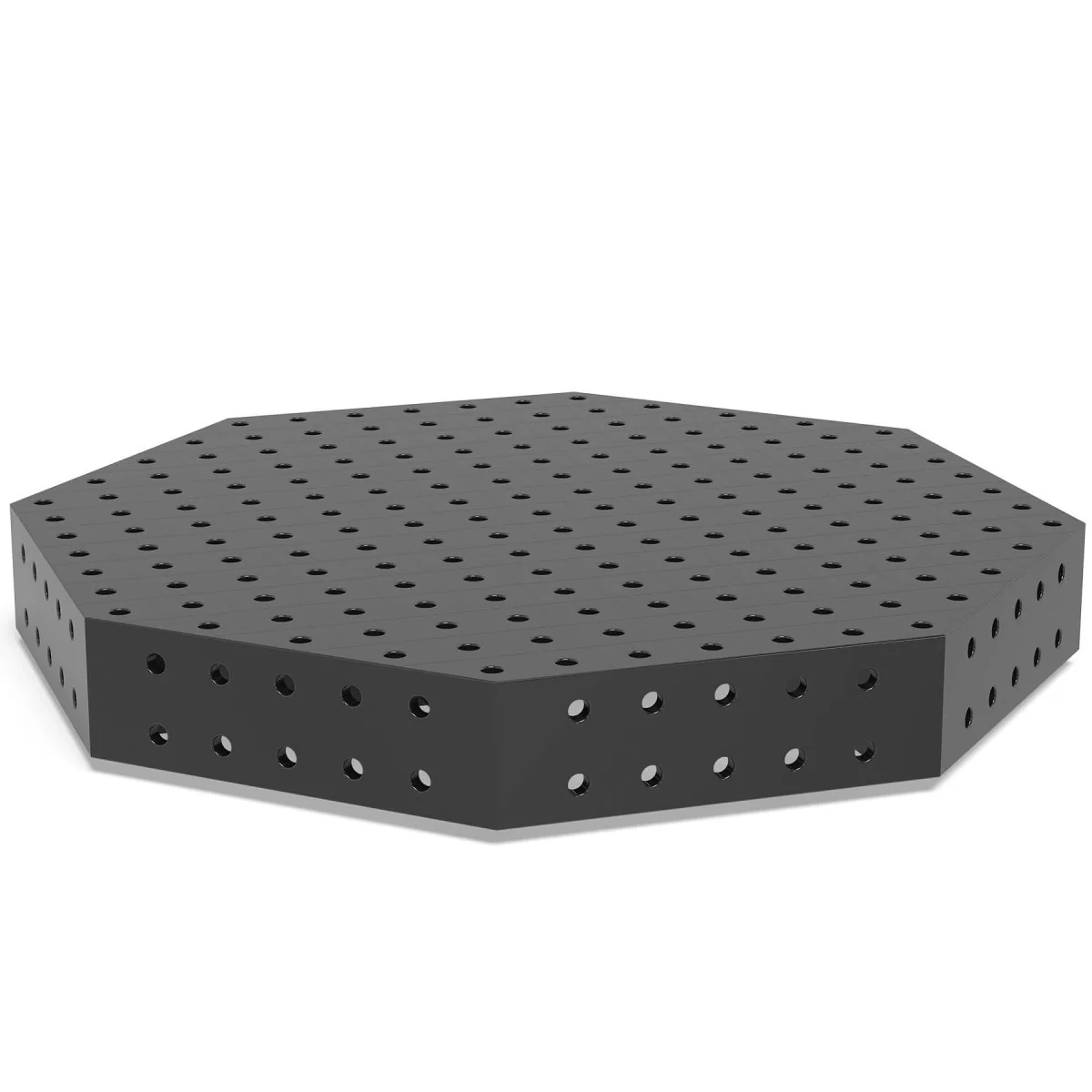

The Siegmund Octagonal Table SW 1,500x200mm offers superior strength, accuracy, and accessibility for robotic welding and high-precision automation environments. Its octagonal shape provides full multi-axis reach for manipulators and fixtures, while the plasma nitrided surface ensures exceptional resistance to heat, wear, and deformation under heavy use.
- Built from S355J2+N steel for unmatched rigidity and long-term durability.
- 25mm (0.98" Inches) thick top plate provides excellent flatness and stability.
- Features a 1,624mm (63.9" Inches) diameter workspace ideal for large assemblies.
- System 28 hole grid supports all Siegmund tooling and modular accessories.
- Plasma nitrided finish enhances hardness, surface protection, and precision life.

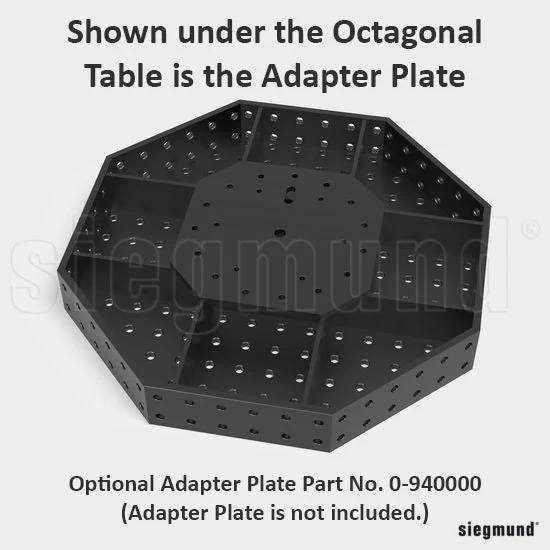

- Adapter plates available for robotic positioner integration or custom connections.
Key Features:

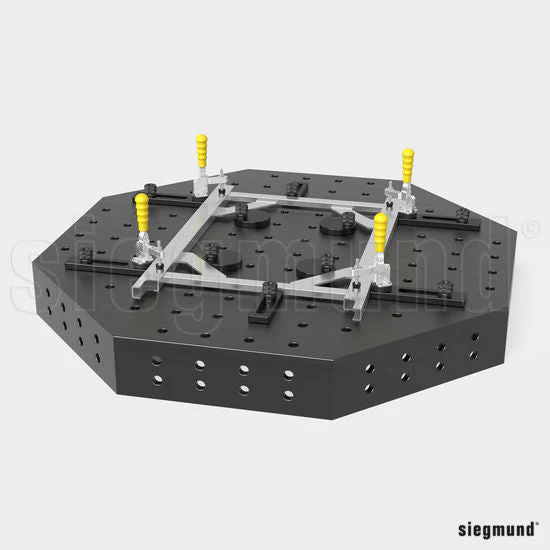

- Octagonal layout allows unrestricted 360° access for fixtures and robots.
- 726 kg (1,600.6 lbs.) construction ensures superior vibration resistance.
- Plasma nitrided surface provides exceptional longevity and surface stability.
- Fully compatible with Siegmund System 28 tooling and automation fixtures.

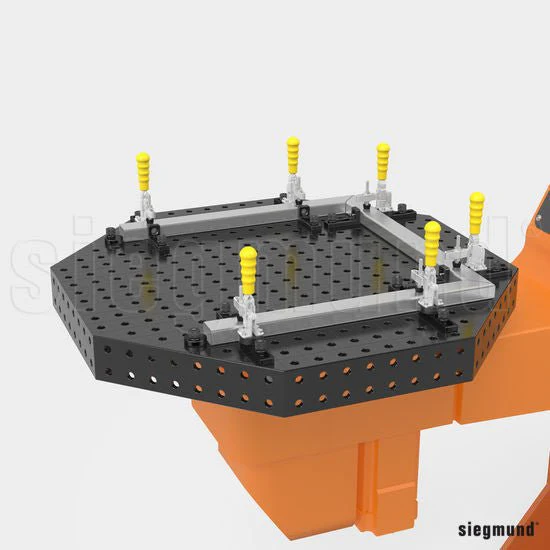

- Ideal for robotic welding, heavy fabrication, and industrial automation cells.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 621mm (24.4" Inches)
- Width: 1,500mm (59.1" Inches)
- Height: 200mm (7.8" Inches)
- Diameter: 1,624mm (63.9" Inches)
- Material: S355J2+N Steel
- Material Thickness: 25mm (0.98" Inches)
- Weight: 1,600.6 lbs. (726 kg.)
- Surface: Plasma Nitrided
Common Uses:
This Siegmund Octagonal Table serves as a robust, high-precision foundation for robotic welding systems, automation setups, and modular fixture assemblies. Its octagonal design provides superior access for manipulators, while the plasma nitrided surface maintains long-term accuracy and reliability under the toughest industrial demands.
